Install Tyk Self-Managed on Docker

Installation guide for the Tyk Self-Managed on Docker

Edition	Deployment Type
Enterprise	Self-Managed, Hybrid

Prerequisites

• Docker
• Enterprise Edition License

This guide spins up a full Tyk Self Managed stack; however, if you are interested in learning Tyk Stack, there’s an option for Tyk Demo, which is a project that spins up a full Tyk stack that includes pre-populated API definitions of all kinds, with various middleware options, and can also spin up supporting tools such as Prometheus, Keycloak (IDP), etc.

Running on Podman, containerd, or another container runtime? See Container Runtimes.

What’s included?

This installation will run Tyk Self-Managed on your machine, which contains 5 containers: Tyk Gateway, Tyk Dashboard, Tyk Pump, Redis and MongoDB.

Please visit the Planning for Production page to learn how to configure settings for optimal performance.

From v5.5.0 onwards, Docker images are based on distroless. This means that you will not be able to obtain a shell with docker run --rm -it tykio/tyk-gateway:v5.5.0 sh. The image can be inspected with tools like dive or Docker Desktop.

Instructions

1. Clone the GitHub repo

   git clone https://github.com/TykTechnologies/tyk-pro-docker-demo


2. Edit your hosts file

   You need to add the following to your hosts file:

   127.0.0.1 www.tyk-portal-test.com
   127.0.0.1 www.tyk-test.com


3. Add your developer license

   From your installation folder:

   Create an .env file - cp .env.example .env. Then add your license string to TYK_DB_LICENSEKEY.

4. Initialise the Docker containers

   With MongoDB

   Run the following command from your installation folder:

   docker-compose up


   With PostgreSQL

   Run the following command from your installation folder:

   docker-compose -f ./docker-compose.yml -f ./docker-compose.postgres.yml up


   This will will download and setup the five Docker containers. This may take some time and will run in non-daemonised mode so you can see all the output.

5. Bootstrap the Tyk installation

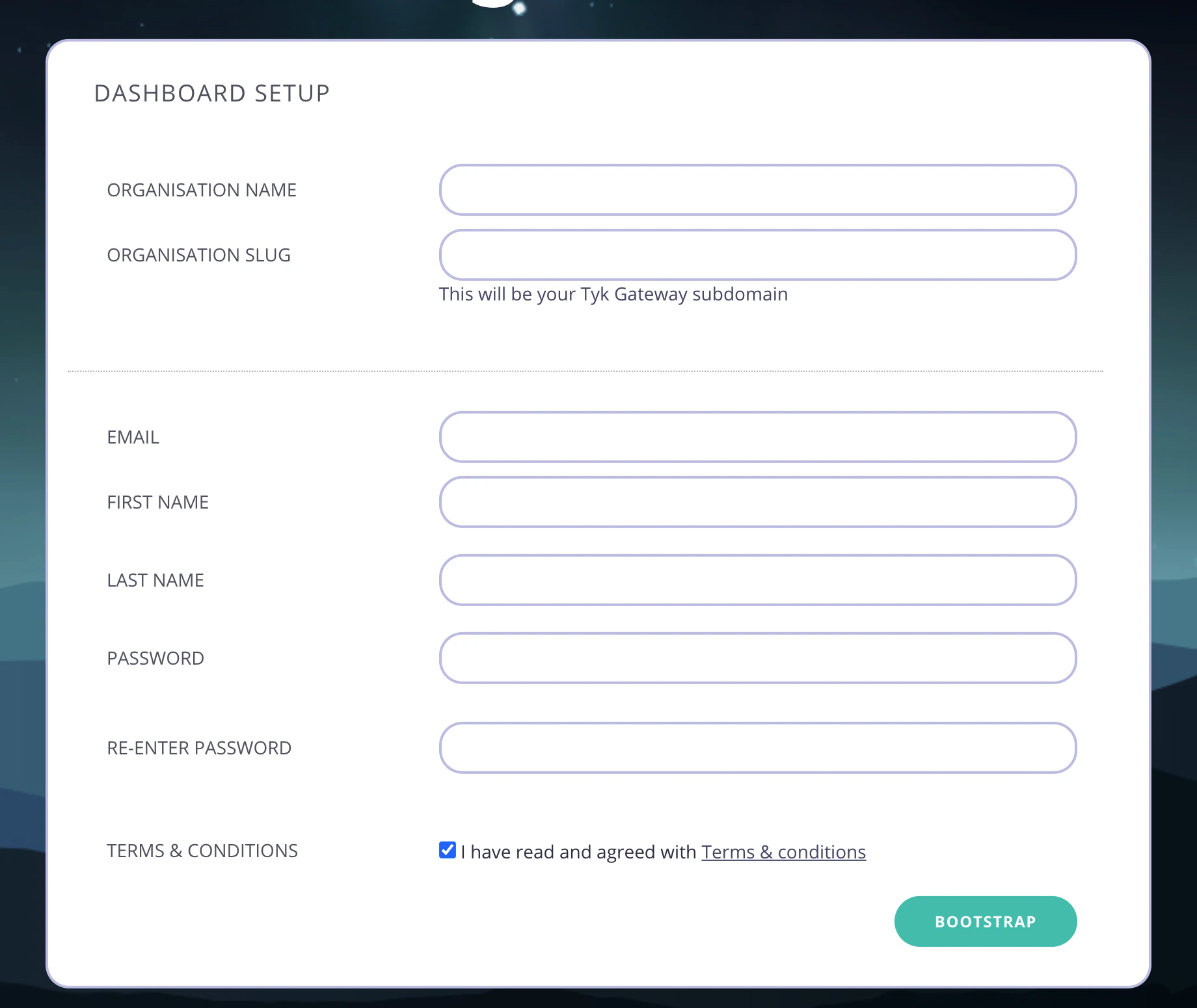

   Go to http://localhost:3000 in your browser. You will be presented with the Bootstrap UI to create your first organization and admin user.



6. Create your organization and default user

   You need to enter the following:

   • Your Organization Name

   • Your Organization Slug

   • Your User Email Address

   • Your User First and Last Name

   • A Password for your User

   • Re-enter your user Password

     For a password, we recommend a combination of alphanumeric characters, with both upper and lower case letters.

   Click Bootstrap to save the details.

7. Log in to the Tyk Dashboard

   You can now log in to the Tyk Dashboard from 127.0.0.1:3000, using the username and password created in the Dashboard Setup screen.

Uninstall

To delete all containers as well as remove all volumes from your host:

With MongoDB

docker-compose down -v

With PostgreSQL:

docker-compose -f ./docker-compose.yml -f ./docker-compose.postgres.yml down -v
